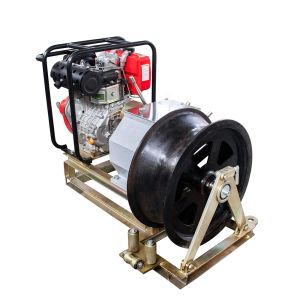

A 5-ton single drum winch with a gasoline engine is a powerful
piece of equipment commonly used in construction, towing, and
industrial applications. Here are some key features and
specifications you might expect from such a winch:
### Key Features:
1. **Load Capacity**:
- Designed to handle loads up to 5 tons (approximately 11,000 lbs).
2. **Drum Type**:
- Single drum configuration allows for efficient winding and
unwinding of rope or cable.
3. **Engine Type**:
- Powered by a gasoline engine, which provides portability and ease
of use in locations without electrical power.
- Engine specifications may vary, but common options include
4-stroke engines with horsepower ratings typically between 6 to 15
HP.
4. **Winch Control**:
- May come with remote control options for safe operation from a
distance.
- Manual controls for direct operation.
5. **Rope/Cable Type**:
- Generally compatible with wire rope or synthetic rope, depending
on the application.
- The drum may have a specific capacity for rope length and
diameter.
6. **Frame Construction**:
- Sturdy construction, often made from steel or heavy-duty
materials to withstand harsh working conditions.
- May have a portable design with wheels for easy transportation.
7. **Safety Features**:
- Equipped with safety brakes to prevent free-spooling.
- Emergency stop features and protective guards.
8. **Applications**:
- Suitable for various tasks including lifting, pulling, and towing
in construction sites, logging, marine applications, and more.
### Specifications (Example):
- **Load Capacity**: 5 tons
- **Engine Type**: Gasoline, 4-stroke
- **Horsepower**: 6-15 HP
- **Drum Diameter**: Varies (typically around 8-12 inches)
- **Rope/Cable Capacity**: Varies based on diameter (e.g., 200-300
feet of 1/2 inch cable)
- **Weight**: Approx. 300-500 lbs depending on design and materials
- **Dimensions**: Varies based on manufacturer
### Considerations:
- **Maintenance**: Regular maintenance of the engine and winch
components is essential for safety and longevity.
- **Environment**: Consider the operating environment (e.g., wet,
muddy, or uneven terrain) and choose a winch with appropriate
features.
- **Regulations**: Ensure compliance with local regulations and
safety standards when using winches in commercial applications.
### Conclusion:
A 5-ton single drum winch with a gasoline engine is a versatile and
essential tool for heavy lifting and towing tasks. When selecting a
winch, consider the specific requirements of your application,
including load capacity, engine power, and safety features. Always
consult the manufacturer's specifications and guidelines for
optimal usage and maintenance.
